docs/adr/0100-vox-is-an-owned-native-media-package.md

ADR 0100: Vox is an owned native media package

Status: accepted (2026-08-15). Current-status addendum (2026-08-19): ADR 0128 supersedes the staged rollout and user-body-only child ownership below. Both active body choices now use one Vox child as their sole media owner when media is enabled; text-only official-bot mode spawns none. This ADR's owned source, provenance, AGPL package license, Apache client, and process-boundary decisions remain in force; the first-rollout text and diagram are historical.

Context

The user-session Discord body depends on ClankVox for screen-share receive and Go Live publish, but the source lived in the previous Clankie monorepo while this repository resolved an unmanaged binary from CLANKVOX_BIN or the operator's home directory. The TypeScript IPC client also lived inside apps/discord-user-session, even though the Rust process implements a broader media plane: Discord voice, DAVE, speaker capture, TTS and music pacing, screen-watch, Go Live publishing, and transport telemetry.

The previous source is AGPL-3.0-or-later. The rest of this repository is Apache-2.0. ADR 0025 therefore prohibited an unrecorded import, while ADR 0098 (user-session shares) allowed the compiled process only as an external sidecar. That arrangement kept the licenses separate but made the binary's source, build, protocol, and runtime drift independently.

Decision

The native media source lives at apps/vox as the private pnpm workspace package @clankie/vox and Rust binary clankvox. Its package-level LICENSE is AGPL-3.0-or-later and its exact source commit and tree are recorded in apps/vox/PROVENANCE.md, including the digest of the recovered Go Live DAVE patch that was newer than the base commit. The repository root remains Apache-2.0; the package license is an explicit mixed-license boundary and no source is relicensed.

The separate Apache-2.0 package @clankie/vox-client owns process discovery, child lifecycle, framed IPC, typed commands, decoded video, binary speaker audio, and generic transport events. Discord bodies consume that package instead of importing code from the AGPL package or carrying private copies of the protocol. A normal run resolves the workspace release or debug binary; ~/.clankie/bin/clankvox remains a compatibility fallback and CLANKIE_VOX_BIN is the explicit override.

The first rollout keeps the existing proven ownership split:

  • Vox owns user-session screen-watch and Go Live media.
  • @discordjs/voice owns ordinary bot and user-session voice.
  • The complete Vox voice/audio contract is exposed by the shared client so the user-session body can migrate to one media owner separately.
  • Official-bot voice moves only after live DAVE, capture, latency, and recovery evidence shows that replacing the maintained Discord library is better.

The active user-session body owns the Vox child process in the current rollout. Vox is a workspace package, not an independently supervised daemon: media credentials and process lifetime remain scoped to the body that opened the Discord user gateway.

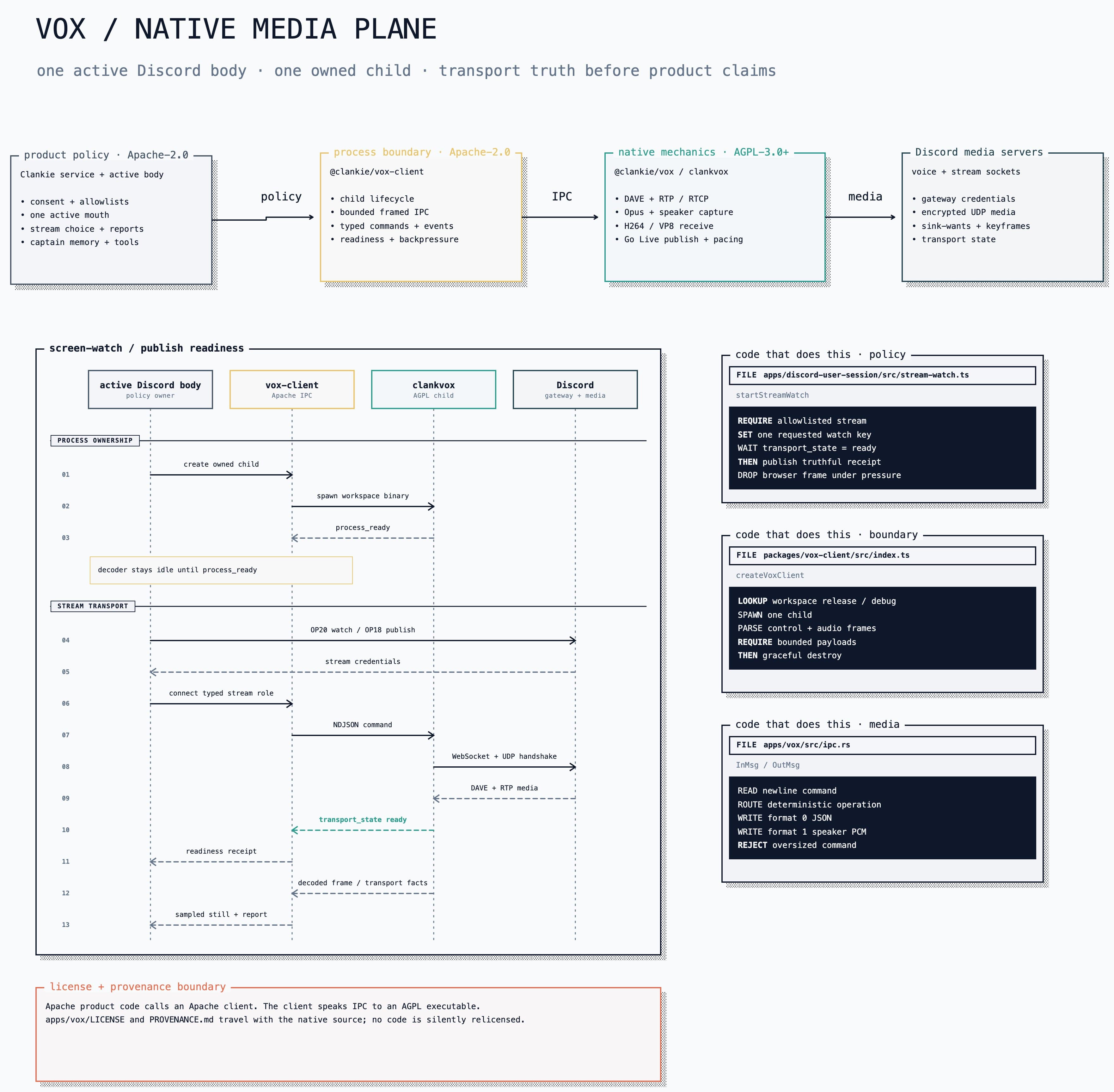

Vox native media architecture

Editable Turbopuffer tldraw source

Options weighed

  • Continue resolving an external binary. Rejected because source, build, IPC, and runtime could drift while CI verified only the TypeScript half.
  • Replace all Discord voice immediately. Rejected because official-bot voice already has a maintained, live-proven media owner and a big-bang swap would combine source recovery with a production transport migration.
  • Run Vox as a top-level daemon. Rejected because it would outlive the credential-holding body and complicate the one-active-mouth invariant.
  • Relicense the imported source as Apache-2.0. Rejected without a complete contributor-rights disposition. The existing AGPL license is preserved.

Consequences

  • pnpm typecheck, pnpm test, pnpm lint, and pnpm fmt:check cover the native package through its workspace scripts.
  • Building Clankie compiles a release Vox binary in apps/vox/target/release.
  • Distributions that include apps/vox must preserve its AGPL license and corresponding-source obligations.
  • Discord's normal-user automation risk remains unchanged and stays behind the existing personal-lab opt-in and active-body controls.
  • ADR 0025's placement prohibition and ADR 0098 (user-session shares)'s external-binary placement are superseded by this decision; their protocol and product boundaries remain.
