ADR 0047: The Discord activity plane carries Clankie's rendered media

Status: accepted (James, 2026-07-25). The activity plane shipped. The separate user-session watch/publish path that was future work at ratification later shipped through ADR 0098 (user-session shares) and ADR 0100. Live game sound is added by ADR 0114. Current-status addendum (2026-08-19): ADR 0128 governs Discord media ownership. The Activity remains the bot-supported rendered-media surface; screen watch and Go Live remain user-body capabilities because Discord does not offer them to bots.

Context

Clankie plays and talks in the same Discord room through separate surfaces. The emulator owns the ROM, core, savestate, and rendered frame; official-bot voice owns conversation (ADR 0045). Humans need to see the rendered game without moving copyrighted or stateful emulator bytes to a browser.

Discord blocks bot accounts from publishing Go Live video. Normal-user Go Live is a separately opted-in personal-lab capability under ADR 0024, not the default path for a Clankie-rendered surface. Discord Activities are the supported bot-transport alternative.

Decision

Clankie gains an activity plane: a Discord Embedded App launched by the bot into a voice channel. It receives bounded rendered media from the host and holds no ROM, core, savestate, Discord credential, or machine authority.

The activity is the default way to show Clankie's own rendered surface. The lab body covers screen-share receive and Go Live media that Activities cannot.

Activity state is a facet

Connection phase and activity presence are orthogonal. A voice session may have an activity, a Go Live stream, both, or neither. Activity state therefore stays a separate observational facet rather than another rung in the connection phase ladder.

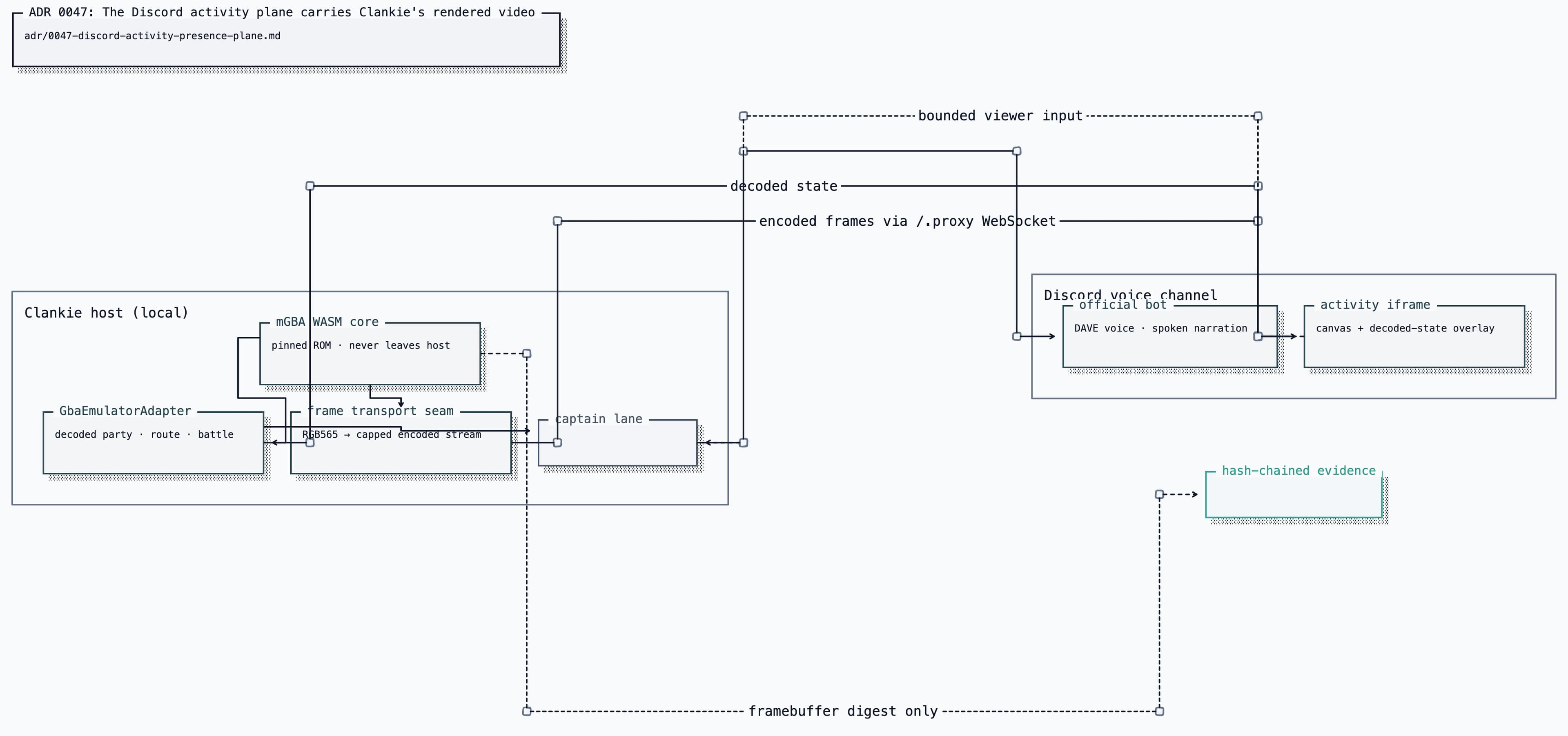

Rendered media and bounded display state cross the media boundary

The host emits capped encoded frames and live PCM through lossy transports. Raw media never enters semantic event streams; evidence carries frame digests. Disconnected producers and slow viewers drop stale media rather than building queues. Audio is never replayed to late viewers.

The display sidecar carries only bounded turn fields and a closed work-phase enum. The phase is emitted at the free-play loop's real thinking/action boundary and retained latest-only for late viewers. It grants no input or authority and prevents clients from guessing model state from frame timing.

The retained implementation evidence justified the simple transport: a FireRed frame compressed to about 3.2 KB and encoded in about 1.68 ms, making per-frame PNG sufficient at hardware rate. Async pacing was load-bearing: blocking waits froze frame delivery and service I/O, while awaited timers preserved both.

The public viewer and private producer are separate listeners. Only the viewer is tunnelled; producer ingress stays loopback-only behind a brokered bearer. The play host dials outward, so the internet-facing renderer cannot connect into the credential-holding service.

The current viewer has no keyboard, pointer, or outbound control channel. Adding one later would create a new untrusted-input boundary rather than inheriting authority from the Activity.

Alternatives considered

• Normal-user Go Live as the default was rejected because it violates Discord's terms and inherits reverse-engineered transport risk.
• Wait for bot video support was rejected because Discord provided no committed path.
• Post periodic PNG attachments was retained only as a non-live fallback.
• Stream through a third-party video service was rejected because it adds another account, terms, and latency for a worse in-room result.

Consequences

• apps/discord-activity is rendering-only and holds no Discord credential or emulator authority.
• The emulator advances at hardware rate while watched, so live play is not frame-for-frame replayable; deterministic scenario tests remain separately driven.
• Unverified Discord Activities retain Discord's developer/tester and small- server limits.
• Current tunnel setup, ports, bounds, and diagnostics belong in the activity operating guide; launch and voice configuration belong in the bridge operating guide.
