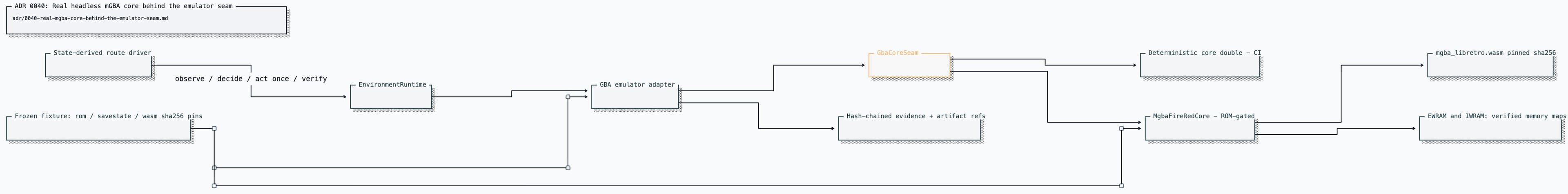

ADR 0040: Real headless mGBA core behind the emulator seam

Status: accepted.

Context

ADR 0039 froze the governed GBA emulator surface — adapter, strict contracts, state-derived driver, hash-chained evidence — proven in CI against a deterministic core test double behind an explicit adapter-facing seam. This slice (VUH-913) swaps a real emulator core behind that seam so Clankie drives an actual FireRed ROM end-to-end: real input control against a locally emulated game the operator is entitled to run, no external service, no game rules broken. The governed surface must not change; only the core does.

Decision

Core: pinned mGBA WASM via the libretro C ABI, in-process

The real core is romdev-platform-gba@0.11.0 (MPL-2.0), which ships a prebuilt mgba_libretro.wasm + emscripten glue. MgbaLibretroCore drives the libretro ABI directly in-process: retro_load_game from ROM bytes, retro_run() per frame, keypad via the input-state callback bitmask, EWRAM/IWRAM via RETRO_ENVIRONMENT_SET_MEMORY_MAPS, framebuffer (240×160 RGB565) captured in the video-refresh callback, and retro_serialize/unserialize savestates. Single-threaded, frame-stepped, no timers, no audio device, no sockets — the no-network boundary stays trivially provable (runtime tripwire + the existing static source scan).

MgbaFireRedCore implements the same GbaCoreSeam the test double implements; GbaEmulatorAdapter takes a core factory (defaulting to the double), so CI runs unchanged without a ROM and the governed dispatch path is byte-for-byte the same for both cores.

ADR 0040: Real headless mGBA core behind the emulator seam

Determinism anchors and identity pins

The frozen fixture (integrations/gba-emulator/fixtures/firered-bedroom-route/v1) pins SHA-256 digests for the ROM bytes, the pinned savestate bytes, and the core wasm binary; MgbaFireRedCore.create fails closed on any mismatch. ROM and savestate bytes stay operator-local (env paths CLANKIE_GBA_ROM_PATH, CLANKIE_GBA_SAVESTATE_PATH) and never enter the repository, fixtures, events, or artifacts. The savestate is regenerated deterministically by integrations/gba-emulator/scripts/bootstrap-savestate.ts — a frozen power-on input schedule that starts a new game and stops in the player's bedroom; two independent generations produce byte-identical savestates. Game RNG state comes from the savestate itself (the fixture's rngSeed is a schema anchor, pinned 0); determinism is proven by running the scenario twice on fresh cores and requiring byte-identical report, decision trace, and evidence trace.

RAM map: empirically verified fields over published memory maps

Observed fields are decoded from fixed EWRAM addresses verified by input differencing against the running ROM (press input → step frames → diff the 256 KB EWRAM snapshot): player tile coords at EWRAM+0x36E48 (two s16, matches the pokefirered gObjectEvents[0].currentCoords layout) and the facing byte at EWRAM+0x36E58 (1=south, 2=north, 3=west, 4=east). Decoding fails closed on implausible values. The scenario's tile map itself is empirical: a flood probe moved the player onto every tile marked walkable; unprobed tiles are blocked.

The legacy retro_get_memory_data(RETRO_MEMORY_SYSTEM_RAM) accessor is not the complete address-space surface. During game load, mGBA publishes its memory descriptors through RETRO_ENVIRONMENT_SET_MEMORY_MAPS, including EWRAM (0x02000000, 256 KB) and IWRAM (0x03000000, 32 KB). MgbaLibretroCore copies the transient wasm32 descriptor table during the environment callback, validates pointer bounds, and snapshots either region from the WASM heap. The legacy accessor remains only as an EWRAM compatibility fallback for cores that do not publish descriptors. IWRAM makes FireRed's pointer-bearing state reachable without a custom emulator build. The version-pinned gameplay decoder and its fail-closed field rules are defined in ADR 0043.

State-derived routing that adapts to observed collision

The route driver derives every step by BFS from the currently observed position over the fixture's verified tile map — no input transcript. The verify-after-act step distinguishes three outcomes: landed on the intended tile (continue); a first press that changes facing without moving (turn, retry the same edge); or an already-facing press that remains on the same tile (record the directed edge as observed collision and re-plan around it). Anything else — frame freeze or unexpected tile — is a desync and pauses fail-closed. The FireRed bedroom exhibits a real directed collision (the bed-side approach to the target tile), so the frozen scenario exercises the re-plan path on every run, and a CI stub reproduces turning and collision without a ROM.

ROM gating and evidence

CI never sees a ROM: the real scenario, ROM-gated tests, and run script all skip cleanly unless the operator env paths are set, and the CI-safe suite (double + runner-over-stub-seam) is unchanged. A recorded local run captures report, decision trace, hash-chained event trace, semantic events, a framebuffer screenshot PNG, a two-run byte-identical determinism proof, and a runtime no-network tripwire result (fetch/socket/dns traps armed for the whole run) into the operator's receipt directory.

Supply chain

The core dependency is version-pinned exactly (romdev-platform-gba@0.11.0) and its wasm binary is content-pinned by SHA-256 in the fixture and verified at core creation. Provenance: monteslu/romdev builds the core from mGBA sources (MPL-2.0; license text ships in the package). If the upstream package disappears or a custom build is needed (e.g. widened memory access), the vendor path is to build mgba_libretro.wasm from mGBA source with emscripten and carry it as a repository- or operator-pinned artifact behind the same MgbaLibretroCore driver; the seam and contracts do not change.

Options weighed

  • Native libmgba bindings (N-API) — rejected for this slice: a native build chain per platform against a WASM core that is already deterministic, in-process, and dependency-free; WASM also sandboxes the core.
  • RetroArch frontend / network command interface — rejected (ADR 0039): introduces a local socket and a frontend where the in-process ABI keeps the no-network boundary provable.
  • Copying ROM/savestate bytes into fixtures for reproducibility — rejected: game binaries stay operator-supplied; identity digests plus a deterministic bootstrap script give reproducibility without carrying bytes.
  • Trusting community RAM maps without verification — rejected: every decoded offset is verified by input differencing against the running pinned ROM; the community decompilation corroborates but does not substitute.
  • Fail closed on any unexpected post-input position — softened: an emulator-refused transition is observable collision reality (position unchanged, facing turned), and treating it as fatal desync would make honest navigation impossible; true desync signatures still fail closed.

Consequences

  • Clankie drives a real Pokémon FireRed binary end-to-end through the unchanged governed surface: VUH-907's plumbing is proven beyond against a stand-in.
  • The adapter constructor accepts an injected core factory; the double stays the default and CI stays ROM-free and green.
  • Real-run evidence is deterministic, independently re-hashable, and gated on operator-supplied paths; the live-capability boundary remains empty.
  • The core exposes EWRAM and IWRAM through the standard libretro memory-map callback; the FireRed gameplay decoder accepts only the pinned ROM profile and rejects unsupported field values rather than inferring game state.
