docs/adr/0043-version-pinned-firered-gameplay-profile.md

ADR 0043: FireRed gameplay uses a version-pinned decoded state profile

Status: accepted.

Context

ADR 0040 places a real headless mGBA core behind the governed emulator seam, but overworld coordinates alone do not support general bounded gameplay. Party and bag records use pointer-bearing and encrypted save structures; battle input changes among action selection, move selection, and resolution; dialog and menus reuse buffers that can retain stale values. Treating raw bytes as game state without an exact ROM profile can fabricate an action prompt or victory.

The implementation remains ROM-free in CI while proving the same state-derived control loop that runs against the operator-supplied real core. A passing live capability requires a two-fresh-core real receipt.

Decision

One exact ROM profile

decodeFireRedState accepts only Pokémon FireRed US v1.0 with SHA-256 3d0c79f1627022e18765766f6cb5ea067f6b5bf7dca115552189ad65a5c3a8ac. Its symbol addresses and structure layouts are pinned to the corresponding pret/pokefirered source profile. The decoder reads:

  • EWRAM overworld coordinates, facing, text buffers, menu state, battle buffers, battlers, and outcome;
  • IWRAM pointers to the active save blocks plus main-loop and task state;
  • encrypted, checksummed party substructures, including personality-dependent permutations;
  • encrypted bag quantities across all five pockets;
  • move metadata and power from the pinned ROM's battle-move table.

Every pointer, bound, checksum, enum, count, cursor, HP value, and battle outcome is validated. Unsupported state throws and pauses the governed session. Only outcome 1 is a win; loss outcomes 2 and 9 are losses, and every other nonzero outcome is unsupported rather than treated as victory.

State-derived gameplay goal

The versioned real-scenario contract supports reach_target and trainer_battle_won. The latter can require party and inventory proof before navigation. On each iteration the controller observes the latest authoritative state, chooses one bounded action, executes it through EnvironmentRuntime, and verifies that frames and expected state advance. It carries no input transcript.

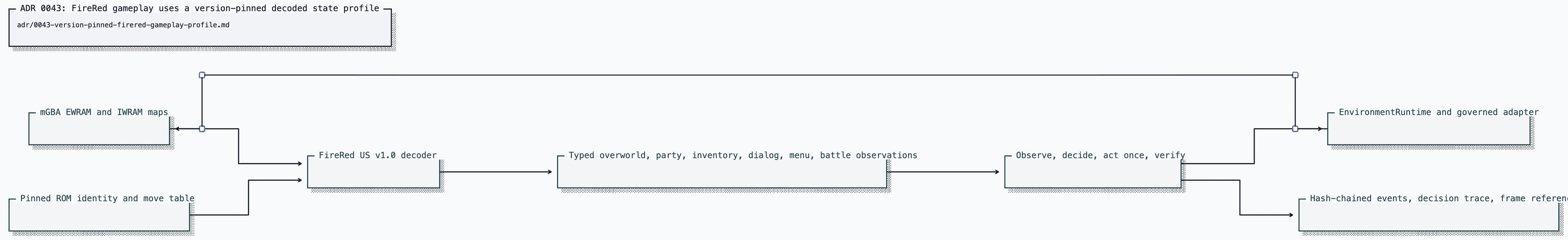

ADR 0043: FireRed gameplay uses a version-pinned decoded state profile

The controller opens the start menu, observes party and bag data, closes menus, waits through callback-locked field transitions using bounded frame advance, routes by BFS over verified tiles, engages the trainer, advances dialog, selects the highest-power decoded legal move, and halts only on a decoded win. It also recognizes FireRed's all-zero battle initialization sentinel after gMain.inBattle rises and before BattleMons is populated. Partially initialized records, missing or contradictory menus, frozen frames, unexpected movement, unknown battle outcomes, and decision/evidence exhaustion fail closed.

Evidence tiers

CI exercises the full controller against DeterministicGbaCoreDouble. The double is test infrastructure and never counts as proof that a ROM works. The operator-local gameplay:live-proof command selects a schema-valid scenario, runs two fresh real cores, requires byte-identical reports and traces, arms a no-network tripwire, and writes content-bounded receipts plus a final framebuffer PNG. ROM and savestate paths and bytes are absent from receipts. The firered-oaks-lab-rival scenario passes this gate: all authoritative checks are true, the final battle result is won, both runs are byte-identical, and the no-network attempt count is zero.

Options weighed

  • Image-only gameplay — rejected because cursor, battle phase, inventory, and outcome are stronger and more deterministic when decoded from validated game state.
  • Heuristic offsets across FireRed revisions — rejected because silent layout drift can turn arbitrary bytes into a plausible action or victory.
  • Scripted input transcripts — rejected because they do not adapt to observed state and cannot distinguish progress from desynchronization.
  • Treat every terminal battle outcome as success — rejected because run, capture, draw, and unsupported outcomes are not a trainer victory.
  • Store ROM or savestate fixtures in the repository — rejected; CI uses the labeled double and live proof uses operator-local copyrighted bytes.

Consequences

  • Clankie has a bounded, general FireRed gameplay loop for navigation, menus, party, inventory, dialog, and trainer battles.
  • Supporting another ROM revision requires a separate identified and tested profile; it is never selected by guesswork.
  • ROM-free CI proves controller semantics; the ROM-gated rival receipt satisfies the live capability gate for the pinned FireRed profile.
  • Live proof remains deterministic, independently hashable, local-only, and free of ROM or savestate content.
