apps/relay/README.md

Remote relay

The launcher supervises the relay like every other member of the stack: clankie restart relay owns it, clankie status reports it, and it restarts with the clankie service whose brokered captain bearer it holds. Pairing goes further and guarantees it: clankie pair and /pair reuse a healthy relay, start a stopped one, and mint no offer at all if it will not come up, so a paired device never points at a relay nobody started. A control plane that is not this machine runs its own relay; pairing says so instead of starting a local one that proves nothing. The headless command contract is docs/cli.md.

It listens on CLANKIE_RELAY_PORT (default 4321 — 4320 belongs to the activity surface). The origin remote devices should reach it on is owner-authored settings (relay.url in ~/.config/clankie/settings.json, or the CLANKIE_RELAY_URL override): when set, the control plane advertises it in pairing and session-refresh responses, so paired devices follow a moved relay without a rebuild.

The relay is the HTTP-only operator-conversation boundary for remote Apple clients. Tailscale may carry the connection, but network identity is not authorization: every request carries a device-session bearer.

Operator conversation boundary

The HTTP surface composes the strict @clankie/protocol operator service contract:

  • POST /operator/v1/dispatch accepts the strict operator service contract, including the cursor-long-polled fleet snapshot and persona, roster, channel, terminal, and conversation operations. Seat-scoped creates and sends use the same authenticated boundary.
  • POST /operator/v1/tail accepts the same strict tail request and emits newline-delimited { kind: "event", event }, { kind: "recovery", recovery }, or terminal { kind: "auth_failure", failure } frames.
  • POST /operator/v1/terminal-tail accepts a strict terminal_tail request and emits bounded native-consumable ANSI frame, reset, unavailable, or auth_failure items.

The relay checks the current device record and chat grant against the clankie service on every request, between tail polls, and immediately before emitting a tail page. Expiry, revocation, and grant removal therefore take effect without a reconnect. It uses its own captain service credential for the upstream hop; device credentials never cross it.

Terminal tails apply the same checks with the distinct terminalObserve grant. They address Herdr panes by stable terminal id and end with a typed reset when a native surface must reconnect for a fresh full redraw.

Terminal input rides the plain dispatch path under the distinct terminalControl grant: terminal_control manages one exclusive renewable input lease per terminal and terminal_input writes bounded raw VT bytes under it. The relay only maps the ops to the grant; lease arbitration lives with the captain.

Responses pass the strict public schema and value redaction before emission. Captain session IDs, continuation tokens, provider credentials, and arbitrary provider payloads do not cross the boundary.

Turn submission retains the registry's expectedRevision fence. Duplicate delivery of the same authenticated device request is collapsed to one in-flight or retained result; a stale fence returns the registry's typed revision_conflict result. Replay and tail cursors remain opaque and surface-scoped. A dropped stream resumes from the last emitted event cursor, while expired or reset cursors produce one typed recovery frame and close. Transient seat_offline refusals collapse concurrently but are not retained, so a retry observes a pane that has returned.

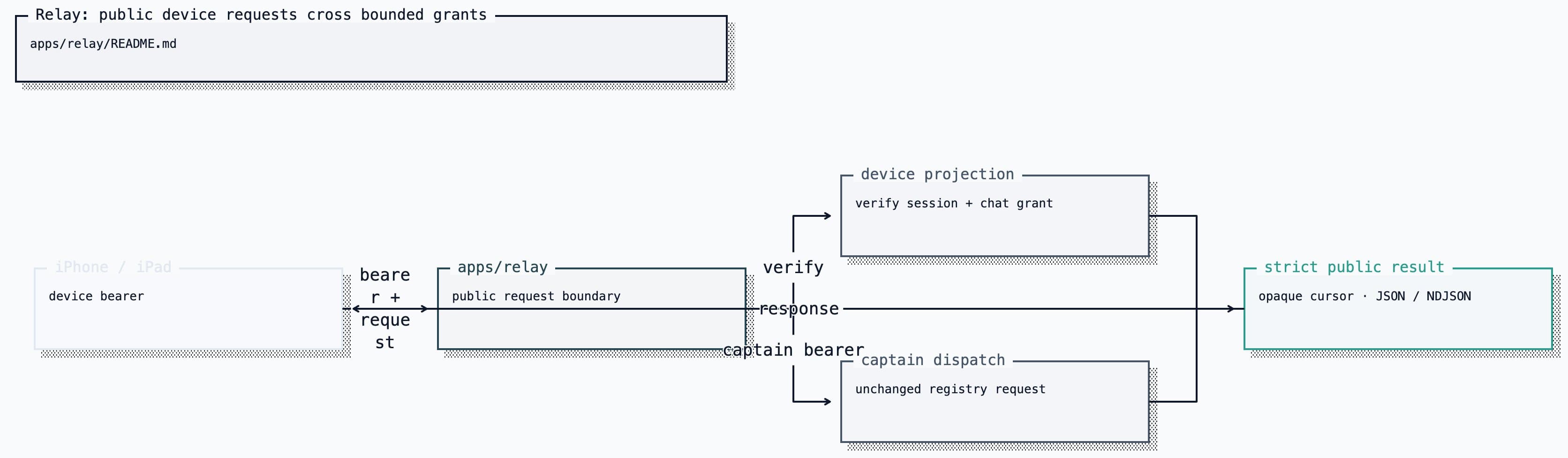

Relay device-request architecture

Editable Turbopuffer tldraw source

Run

pnpm --filter @clankie/relay start

Configuration:

  • CLANKIE_CONTROL_PLANE_URL defaults to http://127.0.0.1:4310 (device verification; the env name is a compatibility alias for the clankie service URL).
  • CLANKIE_CAPTAIN_URL defaults to http://127.0.0.1:4310 (conversation dispatch on the same service).
  • CLANKIE_CAPTAIN_TOKEN enables the authenticated captain hop; conversation requests fail closed when absent, and the relay refuses to start with a token under 16 characters.
  • CLANKIE_RELAY_HOST defaults to loopback; set it to a specific tailnet interface for direct physical-device access.
  • CLANKIE_RELAY_PORT defaults to 4321; PORT is its deployment-platform fallback.

Structured logs contain bounded, redacted route, operation, device, conversation, surface, status, and recovery metadata only. They never include message text or either bearer credential.
